Description
Magnetic Dynamo 6V SZ14 - complete Set - Dynamo Substitute - 6V - Jawa,ČZ
| Product: |
Magnetic Dynamo 6V SZ14 - complete Set - Dynamo Substitute - 6V - Jawa,ČZ |
| Made in: |
CZ  |
| Material: |
6V |
Part Description:
6V ignition and source kit, designed for single and double-cylinder two-stroke, right-handed motors. Power source 100W. Output on 2 spark plugs. Used for Jawa 125,175,250,350, Perak, Kývačka, Panelka, 634, or other less widespread one and two-cylinder types, including the ČZ motors, which are fitted with a 6V PAL dynamo. The set does not include a charging lamp output.

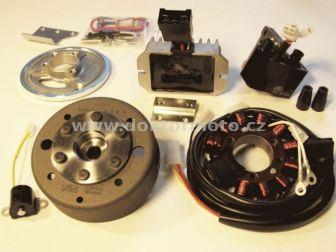

The kit includes:
A-A69S-2 - Stator
A-A69R-1 - Rotor
A-S01T - Sensor
A-R64 - Controller
A-Z67 - Ignition Coil
A-A69N-2 - Stator Carrier
64066015 - Coil holder
For Motorbike Models:
| ČZ |
ČZ 250,350 (471,472) - dvouválec |
ČZ 250 typ 471 - dvouválec |
| ČZ |
ČZ 250,350 (471,472) - dvouválec |
ČZ 350 typ 472 - dvouválec |
| JAWA |
Jawa Bizon 250,350 |
250 Bizon typ 623 |
| JAWA |
Jawa Bizon 250,350 |
350 Bizon typ 633 |
| JAWA |
Pérák |
350 typ 18 (Pérák) |
| JAWA |
Kývačka |
350 typ 354 (Kývačka) |
| JAWA |
Panelka |
350 typ 360 (Panelka) |
| JAWA |
Sport |
350 typ 361 (Sport) |
| JAWA |
Californian |
350 typ 362 (Californian) |
| JAWA |
634 |
350 typ 634 |
